CD13B01

+85℃,2000小时 Load life of 2000 hours at +85℃


主要技术性能  Specifications

项目Item
特性Characteristics
使用温度范围
Operating temperature range(℃)
-25~+105
额定电压范围Rated voltage range(V)
160~450
标称电容量范围
Nominal capacitance range(μF)
270~39000
标称电容量允许偏差
Capacitance tolerance(%)
±20(20℃,120Hz)
漏电流Leakage current
I≤0.01CRUR (μA) 或or 5mA(取较小值Whichever is smaller)
损耗角正切值Dissipation factor(tgδ)
 UR (V)
160~250
350~450
tg δ(max.)
0.25
0.20
(20℃,120Hz)
耐久性Load life(+85℃)
时间 time
2000小时2000 hours
容量变化率Capacitance change
±15%初始测量值以内Within±15% of the initial value
漏电流Leakage current
≤初始规定值Not more than the Initial specified value
损耗角正切值Dissipation factor
≤175%初始规定值Not more than 175% of the Initial specified value
高温贮存Shelf life(+85℃)
时间 time
500小时500 hours
容量变化率Capacitance change
±15%初始测量值以内Within±15% of the initial value
漏电流Leakage current
≤初始规定值Not more than the Initial specified value
损耗角正切值Dissipation factor
≤175%初始规定值Not more than 175% of the Initial specified value
试验后:施加标称电压30分钟,于24至48小时之间测试。
After test: UR to be applied for 30 minutes, 24 to 48 hours before measurement.

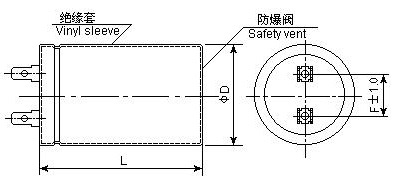

外形尺寸表  Case size table



  (mm)

D+2.0
25
35
L+3.0
60,70,80
60,70,80,100
F±1.0
10
14


纹波电流修正系数Ripple current correction coefficient

温度Temperature(℃)
40
60
70
85
频率Frequency(Hz)
50/60
120
300
1K
≥10K
修正系数Correction coefficient
1.0
0.75
0.62
0.37
修正系数Correction coefficient
0.7
1.0
1.1
1.3
1.4


标称电容量、额定电压、额定纹波电流与外形尺寸对应表
   Nominal capacitance, rated voltage, rated ripple current and case size table

UR(V)
160(2C)
200(2D)
250(2E)
350(2V)
400(2G)
450(2W)
CR(μF)
φD×L(mm)
I(A)*
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
φD×L(mm)
I(A)
270
(271)










φ36×53
3.7
330
(331)








φ36×53
4.1
φ36×83
4.9
390
(391)






φ36×53
4.5
φ36×83
5.3
φ36×83
5.3
470
(471)






φ36×83
5.8
φ36×83
5.8
φ36×83
5.6
560
(561)






φ36×83
6.4
φ36×83
6.4
φ36×100
6.9
680
(681)






φ36×83
7.0
φ36×100
7.6
φ36×100
7.6
820
(821)






φ36×100
8.3
φ36×100
8.3
φ51×75
8.6
1000
(102)






φ51×75
9.2
φ51×75
9.4
φ51×75
9.4
1200
(122)






φ51×75
10.3
φ51×75
10.3
φ51×96
11.4
1500
(152)




φ36×100
8.7
φ51×96
11.5
φ51×96
12.7
φ51×115
13.7
1800
(182)




φ36×100
9.5
φ51×96
13.9
φ51×96
13.9
φ51×130
15.8
2200
(222)


φ36×100
10.6
φ51×75
10.8
φ51×130
15.4
φ51×115
17.4
φ64×96
17.0
2700
(272)


φ36×121
12.7
φ51×75
12.0
φ51×130
19.3
φ51×130
18.8
φ64×115
20.2
3300
(332)
φ36×121
14.0
φ51×75
13.3
φ51×96
14.6
φ64×115
21.4
φ64×115
22.2
φ64×130
23.4
3900
(392)
φ51×75
14.4
φ51×75
14.4
φ51×115
17.0
φ64×130
24.2
φ64×130
25.4
φ77×115
25.6
4700
(472)
φ51×75
15.8
φ51×96
17.4
φ64×96
19.2
φ65×120
27.9
φ64×130
28.2
φ77×130
29.4
5600
(562)
φ51×96
19.0
φ51×115
20.4
φ64×96
21.0
φ77×115
30.7
φ77×130
32.2
φ77×155
34.6
6800
(682)
φ51×96
21.0
φ51×130
23.7
φ64×115
24.7
φ77×155
35.4
φ77×155
38.0
φ90×157
40.5
8200
(822)
φ51×115
24.7
φ64×96
25.4
φ64×115
27.1
φ77×155
41.7
φ90×157
44.4
φ90×157
44.6
10000
(103)
φ64×96
28.0
φ64×96
28.0
φ64×130
31.5
φ90×157
49.0
φ90×157
49.4
φ90×196
53.9
12000
(123)
φ64×96
30.6
φ77×96
32.6
φ77×115
34.8
φ90×157
54.1
φ90×196
59.1
φ90×236
63.8
15000
(150)
φ64×130
38.6
φ77×96
39.0
φ77×130
40.8
φ90×196
66.2
φ90×236
71.1


18000
(183)
φ64×130
42.2
φ77×130
44.6
φ77×155
47.8
φ90×236
77.9




22000
(223)
φ77×130
49.4
φ77×155
53.0
φ90×157
56.5






27000
(273)
φ77×130
54.7
φ90×131
58.2








33000
(333)
φ90×131
64.2
φ90×157
69.0








39000
(393)
φ90×157
75.3












*最大纹波电流Max ripple current ( 40℃,120Hz)
