Advantages:Very
CBB80灯具电容器产品优点：损耗小，体积小，重量轻，内部温升小，优良的自愈稳定性，鉴于内部有放点电阻，所以有可靠的安全保护功能。Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.
CBB80灯具电容器产品用途：广泛应用于日光灯，高效金属卤化物灯等照明灯具。
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.
| 型号Product Model: | CBB80D |
| 品名Product Name: | Lighting capacitor CBB80D01 |
|
详细描述 Description: |
Model reference:CBB80D Rated Voltage:250Vac Rated Frequency:50/60Hz Rated Capacitance:3uF to 60uF Capacitance tolerance:+/-10% or +/-5% (upon request.) Rated Min.&Max. temperatures: -40~+85 degrees Climatic category:40/85/21 Protection Degree:P0 Dissipation Factor:less than 0.002 at 50Hz,20 degrees Test Voltage between terminals:2Un,60sec Test Voltage between terminals and case: 2KV,60sec Reference Standard: EN61048,EN61049 Case type: Platic case Terminals:2 wire Fixing: M8 metal stud |

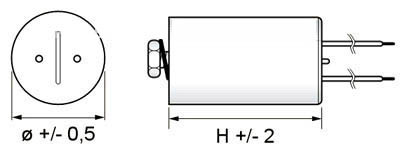

| 电容 (UF) | 额定电压 (V) | 频率 (Hz) | 直径 (Ømm) | 长度 (mm) | 外壳 |
| H | |||||
| 3~15 | 250 | 50-60 | 30 | 60 | 塑料 |
| 16-20 | 250 | 50-60 | 30 | 78 | 塑料 |
| 21-28 | 250 | 50-60 | 30 | 98 | 塑料 |
| 30-40 | 250 | 50-60 | 35 | 95 | 塑料 |
| 45-50 | 250 | 50-60 | 40 | 95 | 塑料 |
| 60 | 250 | 50-60 | 45 | 95 | 塑料 |
| 50 | 110 |
