CBB80D02
收藏此信息 收藏此信息
打印此页 打印此页
联系电话 0577-62780255  13616827466
传真 0577-62790455
邮箱 chrx@chrx.cn  yqrx@hotmail.com
马上留言


Advantages:Very   CBB80灯具电容器产品优点:损耗小,体积小,重量轻,内部温升小,优良的自愈稳定性,鉴于内部有放点电阻,所以有可靠的安全保护功能。Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.

CBB80灯具电容器产品用途:广泛应用于日光灯,高效金属卤化物灯等照明灯具。
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.

型号Product Model: CBB80D

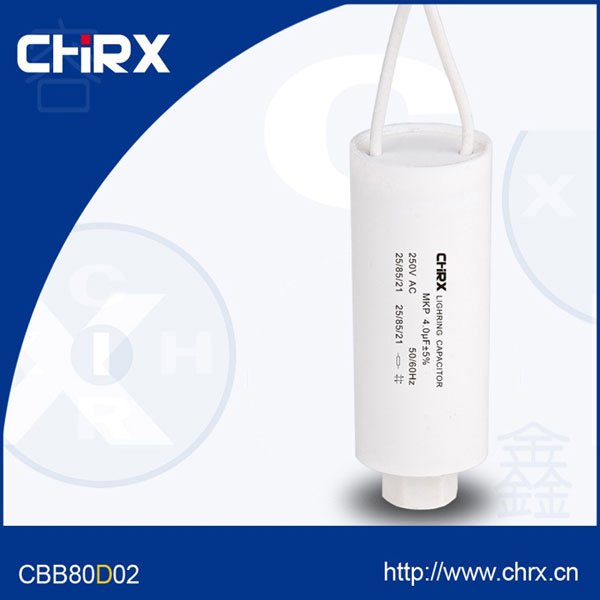

品名Product Name: Lighting capacitor CBB80D02

详细描述

Description:

Model reference:CBB80D
Rated Voltage:250Vac
Rated Frequency:50/60Hz
Rated Capacitance:3uF to 16uF
Capacitance tolerance:+/-10% or +/-5% (upon request.)
Rated Min.&Max. temperatures: -40~+85 degrees
Climatic category:40/85/21
Protection Degree:P0
Dissipation Factor:less than 0.002 at 50Hz,20 degrees
Test Voltage between terminals:2Un,60sec
Test Voltage between terminals and case: 2KV,60sec
Reference Standard: EN61048,EN61049
Case type: Platic case
Terminals:2 wire
Fixing: M8 metal stud

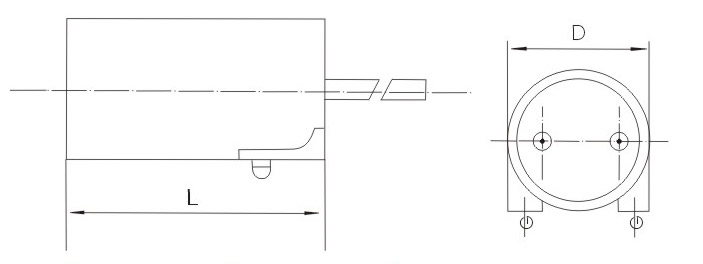

电容 (UF) 电容 (V) 频率 (Hz) 直径 (Ømm) 长度 (mm) 外壳
3 250 50-60 25 60 塑料
4 250 50-60 25 60 塑料
5 250 50-60 25 60 塑料
6 250 50-60 25 60 塑料
8 250 50-60 25 60 塑料
10 250 50-60 30 60 塑料
12 250 50-60 30 60 塑料
16 250 50-60 30 60 塑料
