Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.

Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.

Product Model:

CBB80B

Product Name:

Lighting capacitor CBB80B01

Description:

Model reference:CBB80B
Rated Voltage:250Vac
Rated Frequency:50/60Hz
Rated Capacitance:25uF to 60uF
Capacitance tolerance:+/-10% or +/-5% (upon request.)
Rated Min.&Max. temperatures: -40~+85 degrees
Climatic category:40/85/21
Protection Degree:IP00
Dissipation Factor:less than 0.002 at 50Hz,20 degrees
Test Voltage between terminals:2Un,60sec
Test Voltage between terminals and case: 2KV,60sec
Reference Standard: EN61048,EN61049
Case type: Aluminum case
Terminals:Flexible or rigid leads length 18cm(othen length on request)
Fixing: M8 stud
Discharge resistor in built

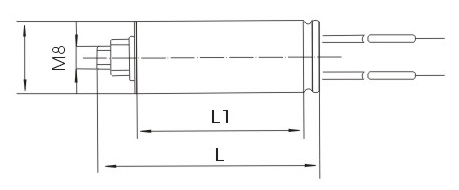

Capacitance(μF)	Rated voltage(V)	Frequency(Hz)	Diameter(Ømm)	Length(mm)		外壳
Capacitance(μF)	Rated voltage(V)	Frequency(Hz)	Diameter(Ømm)	L1	L1	外壳
3~25	250	50-60	35	70	80	铝
26	250	50-60	40	70	80	铝
28	250	50-60	40	70	80	铝
30	250	50-60	40	70	80	铝
32	250	50-60	40	70	80	铝
35	250	50-60	40	70	80	铝
40	250	50-60	50	70	80	铝
45	250	50-60	50	70	80	铝
50	250	50-60	50	70	80	铝
55	250	50-60	50	80	90	铝
60	250	50-60	50	80	90	铝
