CBB60Y01


产品介绍Products

产品为金属化聚丙烯薄膜卷绕而成,无感结构,电子线引出。Products are made winding metallized polypropylene film, no sense of structure, electronic wire leads.



 特点Features

有自愈性好,可靠性高,损耗小的特点。There is good self-healing, high reliability, loss of small features.



 用途Uses

主要用于洗衣机洗涤及甩干,马达启动运行用。Mainly used in washing machine washing and drying, motor starts to run with.

性能指标Performance Indicators

使用温度范围Temperature Range -40℃~+85 ℃
容量范围Capacity Range (5μF~40μF) (1μF~20μF)
额定电压Voltage 250V.AC、450V.AC
电容量偏差Capacitance deviation ±5%(J)
损耗角正切Dissipation ≤10×10-4 ( 23  ℃,f=100Hz )
耐电压Withstand Voltage 2.0Un (10S)
2000V.AC
绝缘电阻Insulation resistance CXRs≥3000S (23℃ ,1min)
引用标准Reference Standard IEC60252  UL810  GB/T3667.1-2005

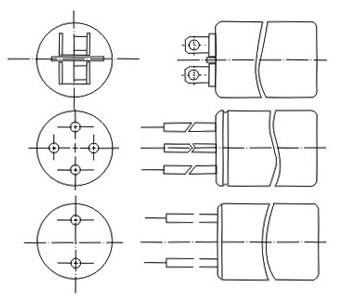

典型规格外线尺寸Typical Specifications Outside Dimensions

容量 250V.AC 450V.AC
μF D H D H
5μF+1μF 35 40 42 40
10μF+4μF 42 40 50.5 51
10μF+5μF 42 40 50.5 51
12μF+5μF 42 50 50.5 51
12μF_6μF 42 50 50.5 51
40μF+20μF 60 60 60 80

具体尺寸和技术参数,可按客户要求协商确定。

Specific dimensions and technical parameters, according to customer requirements through consultation.
