CD60系列电容器是根据美国电子协会标准生产开发，产品质量符合ANSI/EIA-463标准。该电容器外壳由酚醛塑料（胶木）制成，内部由电容器纸和化成箔卷绕而成。该产品具有绝缘性好，防损坏性强，电解液性能稳定，使用寿命长等优点。产品广泛应用于空调压缩机领域。CD60 Series capacitors are developed and researched according to standard of American Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of bakelite plasticized that its character are not only good insulating resistance and strong resistance damaged but also protecting electro-liquid as good sealed feature. It is popular used for the super AC application as good life, higher degree of reliability and stability.
主要技术性能General Specifications:
|
使用温度范围(Operating Temperature )
|
-40～+65℃
|
|
额定电压范围(Voltage Range )
|
110～330VAC
|
|
标称电容量范围(Capacitance Range)
|
21～1536µF
|
|
电容量允许偏差（Capacitance Tolerance）
|
0~+20%
|
|
损耗角正切值（Dissipation Factor）tgδ
|
tgδ≤ 0.10 tgδ≤0.15（20℃，100Hz）
|
|
耐久性(Load Life)
|
根据工作电压、容量的不同，0.5－4分钟通电一次（1秒），
12500～50000次， 具体执行ANSI/ EIA-463-B标准
According to the diffirence working Voltage and capacitance,alternation
0.5-4 minutes turn on 1 time for second.
12500~50000times,According to the ANSI/ EIA-463-B Standard.
|
|
引出端间耐电压(VAC)
Surger Voltage Between Lugs(VAC)
|
施加1.25倍工作电压 2秒钟
Applying 1.25 times Rated Voltage for seconds.
|
|
引出端与外壳间耐电压(VAC)
Surger Voltage Between Lug and Case(VAC)
|
2000VAC 10秒 无击穿 无爆炸
2000VAC 10seconds non-broken down. non-Explosion
|

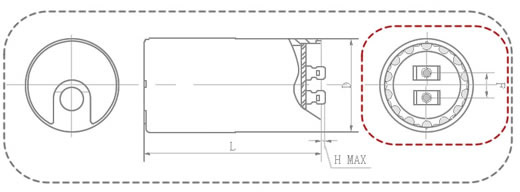

外形图及尺寸Overall and Installation dimension
|
D
|
36.5
|
46.02 |
52.37 |
65.50 |
|
L
|
69.85-111.12
|
85.72-111.12 |
85.72-111.12 |
111.12 |
|
F
|
12.70
|
15.88 |
22.22 |
22.22 |
|
Hmax
|
1.50
|
1.50 |
1.50 |
1.5 |
壳号及尺寸对照表 Case Number and dimension
|
壳号
Case No.（#）
|
毫米尺寸
D×L（mm）
|
英制尺寸
D×L（inch）
|
壳号
Case No.（#）
|
公制尺寸
D×L（mm）
|
英制尺寸
D×L（inch）
|
|
1
|
36.50×69.85
|
1.437×69.85
|
5 |
46.02×111.12 |
1.812×4.365
|
|
2
|
36.50×85.72
|
1.437×3.365
|
6 |
52.37×85.72 |
2.062×3.365
|
|
3
|
36.50×111.12
|
1.437×4.365
|
7 |
52.37×111.12 |
2.062×4.365
|
|
4 |
46.02×85.72 |
1.812×3.365
|
8 |
65.50×111.12 |
2.562×4.365 |
标称电容量、额定电压与壳号对照表
|
UR（VAC）
CASE（#）
CR（µF）
|
110VAC
|
125VAC
|
165VAC
|
220VAC
|
250VAC |
330VAC
|
|
21-25µF |
1 |
1 |
1 |
1 |
1 |
2 |
|
25-30µF |
1 |
1 |
1 |
1 |
1 |
2 |
|
30-36µF |
1 |
1 |
1 |
1 |
2 |
4 |
|
36-43µF |
1 |
1 |
1 |
1 |
2 |
4 |
|
43-52µF |
1 |
1 |
1 |
2 |
2 |
4 |
|
47-56µF |
1 |
1 |
1 |
2 |
2 |
4 |
|
53-64µF |
1 |
1 |
1 |
2 |
4 |
5 |
|
64-77µF |
1 |
1 |
1 |
4 |
4 |
5 |
|
72-86µF |
1 |
1 |
1 |
4 |
4 |
5 |
|
88-106µF |
1 |
1 |
2 |
4 |
5 |
7 |
|
108-130µF |
1 |
1 |
2 |
4 |
5 |
8 |
|
124-149µF |
1 |
1 |
2 |
5 |
5 |
8 |
|
130-156µF |
1 |
1 |
4 |
5 |
5 |
8 |
|
145-174µF |
1 |
1 |
4 |
7 |
7 |
8 |
|
161-193µF |
1 |
1 |
4 |
7 |
7 |
8 |
|
189-227µF |
1 |
2 |
4 |
7 |
8 |
8 |
|
216-259µF |
2 |
2 |
4 |
8 |
8 |
8 |
|
233-280µF |
2 |
2 |
5 |
8 |
8 |
8 |
|
243-292µF |
2 |
3 |
5 |
8 |
8 |
8 |
|
270-324µF |
2 |
3 |
5 |
8 |
8 |
8 |
|
324-389µF |
3 |
4 |
7 |
8 |
8 |
|
|
340-408µF |
4 |
4 |
7 |
8 |
8 |
|
|
378-454µF |
4 |
4 |
7 |
8 |
8 |
|
|
400-480µF |
4 |
4 |
7 |
8 |
8 |
|
|
430-516µF |
4 |
4 |
8 |
8 |
8 |
|
|
460-552µF |
4 |
4 |
8 |
|
|
|
|
540-648µF |
5 |
5 |
8 |
|
|
|
|
590-708µF |
5 |
5 |
8 |
|
|
|
|
645-774µF |
7 |
7 |
8 |
|
|
|
|
708-850µF |
7 |
7 |
8 |
|
|
|
|
720-864µF |
7 |
7 |
8 |
|
|
|
|
800-960µF |
7 |
7 |
8 |
|
|
|
|
815-978µF |
7 |
8 |
8 |
|
|
|
|
829-995µF |
8 |
8 |
8 |
|
|
|
|
850-1020µF |
8 |
8 |
8 |
|
|
|
|
1020-1224µF |
8 |
8 |
|
|
|
|
|
1175-1410µF |
8 |
8 |
|
|
|
|
|
1280-1536µF |
8 |
|
|
|
|
|
