产品优点：损耗小，体积小，重量轻，内部温升小，优良的自愈稳定性，鉴于内部有放点电阻，所以有可靠的安全保护功能。Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.
产品用途：广泛应用于日光灯，高效金属卤化物灯等照明灯具。
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.
| 型号Product Model: | CBB80C |
| 品名Product Name: | Lighting capacitor CBB80C01 |
|
Description: 详细描述 |
Model reference:CBB80C Rated Voltage:250Vac Rated Frequency:50/60Hz Rated Capacitance:3μF to 60μF Capacitance tolerance:+/-10% or +/-5% (upon request.) Rated Min.&Max. temperatures: -40~+85 degrees Climatic category:40/85/21 Protection Degree:P0 Dissipation Factor:less than 0.002 at 50Hz,20 degrees Test Voltage between terminals:2Un,60sec Test Voltage between terminals and case: 2KV,60sec Reference Standard: EN61048,EN61049 Case type: Plastic case Terminals:4-way quick connector Fixing: M8 metal stud |
| 电容 (μF) Capacitance(μF) |
额定电压 (V) Rated voltage(V) |
频率 (Hz) Frequency(Hz) |

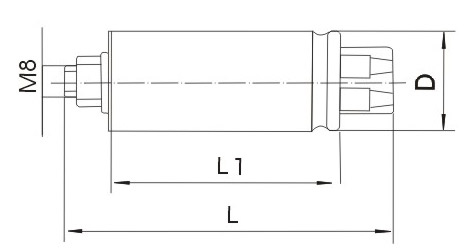

直径 (Ømm) Diameter(Ømm) |
长度 (mm) Length(mm) |
外壳 Case |
|
| L1 | L | |||||
| 3~8.5 | 250 | 50-60 | 30 | 70 | 90 | 铝 |
| 9~12 | 250 | 50-60 | 35 | 70 | 90 | 铝 |
| 13~20 | 250 | 50-60 | 40 | 70 | 90 | 铝 |
| 21~28 | 250 | 50-60 | 42 | 70 | 90 | 铝 |
| 29~35 | 250 | 50-60 | 45 | 70 | 90 | 铝 |
| 36~44 | 250 | 50-60 | 45 | 70 | 90 | 铝 |
| 45~50 | 250 | 50-60 | 50 | 70 | 90 | 铝 |
| 51~60 | 250 | 50-60 | 50 | 80 | 100 | 铝 |
