CJ40A01

Product Characteristic:Vertical rectangular metal outer covering,entire seal structure,moisture-resistance good,bears the impact stably,the electricity performance is reliable,has good from and so on the characteristic.
Product use:This product used in the wireless communication equipment either ineach kind of electronic installation direct current or the pulsation electric circuit.

Specifications

 Item
 Technical specification
Operating temperature
-55℃ ~ +70℃
Capacitance tolerance
J(±5%), K(±10%)
Dissipation Factor
≤0.015 (≤0.004)
Standing Voltage
Between the two leads-to withstand 1.5 times the rated voltage a minute,no flashover or breakdown;
Leads to end with the shell can withstand between between 50Hz AC voltage:
a,Rated voltage≤630V is 750V;
b,Rated voltage >630V is 12.times of rated voltage 1 minute,no arcing or breakdown;
Insulation Resistance
(When Temperature at 20℃)The insulation resistance between the two leads no less than the below provision:
Leads to haed with shell of insulation resistance no less than 5KM Ω.


Capacitance Range(μF)

  Insulation resistance
 160V  250v  ≥400V
 ≤0.1      5000MΩ

 ≥0.22

 200S  500S  1000S
 ≥10  200S  500S  1000S

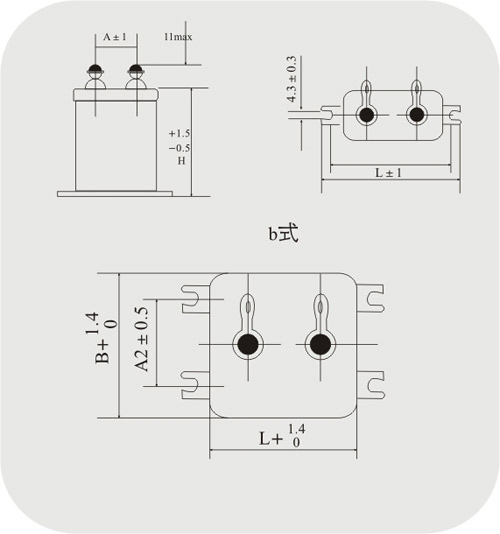

Product Structure Drawing

Case Number and dimension
Case No.(#)
(H)
(L)
(B)
Case No.(#)
(H)
(L)
(B)
1
25
31
11
6
50
46
11
2
16
7
16
3
21
8
21
4
26
9
26
5
31
10
31
18
115
69
86
11
41
19
34
12
46
20
47
13
51
21
64
14
56
22
107
15
61
23
130
69
107
16
66




17
79


Case dimension of Standard Products(mm)

Rated Voltage(V)

Capacitance Range(μF)
160
250
400
630

 1000

1600

0.10



1

7

7

0.22


1
2

7

7

0.47

1
2
4

7

9

1
1
2
4
7

9

12

2
2
4
7
9

13

17

4
4
7
7
13

18

19

10

8

8

10

18

20

21

15

9

10

12







20

10

10

14







25

11

14









30

14

14
