CD60C TYPE ALUMINUM ELECTROLYTIC CAPACITOR SEALED IN ALUMINIUM CASE, BEVEL TERMINAL(WITH M3 SOLDERING SCREW) FOR CONNECTIONS,DIFFERENT COLOURS OF PVC SLEEVE INSULATED.THE PRODUCTION CAN BE DESIGNED AND MADE ACCORDING TO OUR CUSTOMER’S SPECIAL DESIRES
General Specifications:

(Operating Temperature )	-40～+55℃
(Voltage Range )	110～330VAC
(Capacitance Range)	20～1600µF
（Capacitance Tolerance）	0~+20%
（Dissipation Factor）tgδ	tgδ≤ 0.10 tgδ≤0.15（20℃，100Hz）
(Load Life)	+55℃，110～165VAC，1 second on，59 seconds off,After 30000 starts; +55℃，220～330VAC，1 second on，59 seconds off,After 15000 starts; Capacitance vibration rate:Within ±15% from the initial test data; Dissipation Factor:≤0.20
Surger Voltage Between Lugs(VAC)	Applying 1.2 times Rated Voltage for 2 seconds.non-broken down. non-Explosion
Surger Voltage Between Lug and Case(VAC)	2000VAC 10seconds non-broken down. non-Explosion

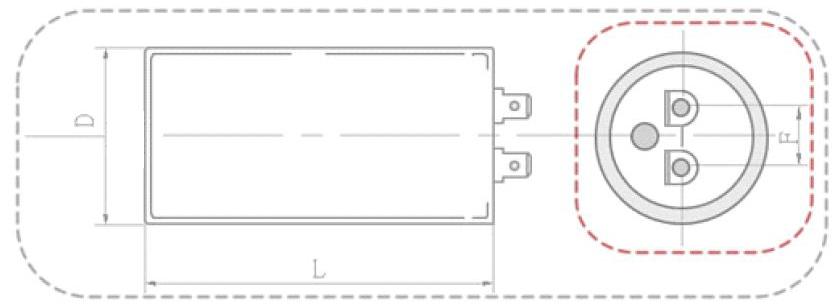

Overall and Installation dimension

NOMINAL CAPACITANCE RATED VOLTAGE AND CASE SIZE TABLE

U_R（VAC） D×L（mm） C_R（µF）	110VAC	125VAC	165VAC	250VAC	275VAC	330VAC
50µF	34×51	34×60	34×60	34×80	34×80	42×80
75µF	34×60	34×60	34×60	34×80	34×80	42×80
100µF	34×80	34×80	34×80	42×80	42×80	42×80
150µF	34×80	34×80	34×80	42×80	50×100	50×100
200µF	34×80	34×80	34×80	42×80	50×100	50×100
250µF	34×80	34×80	42×80	42×80	50×100	50×100
300µF	42×80	42×80	45×100	45×100	50×100	50×100
400µF	45×100	45×100	50×100	50×100	50×100	50×120
500µF	45×100	45×100	50×100	50×100	50×100	50×120
600µF	45×100	45×100	50×100	50×100	50×120	50×120
800µF	50×100	50×100	50×100	50×100	50×120
1000µF	50×100	50×100	60×100
1200µF	55×100	50×100	60×120
1400µF	60×100	60×120	65×120
1600µF	65×120	60×100
