Products： |
|
| Products are made winding metallized polypropylene film, no sense of structure, electronic wire leads. | |
|
|
|
|
Features： |
|
| There is good self-healing, high reliability, loss of small features. | |
|
|
|
|
Uses： |
|
| Mainly used in washing machine washing and drying, motor starts to run with. |
Performance Indicators
| Temperature Range | -40℃～+85 ℃ | |
| Capacity Range | (5μF～40μF) (1μF～20μF) | |
| Voltage | 250V.AC、450V.AC | |
| Capacitance deviation | ±5%(J) | |
| Dissipation | ≤10×10-4 ( 23 ℃,f=100Hz ) | |
| Withstand Voltage | 2.0Un (10S) | |
| 2000V.AC | ||
| Insulation resistance | CXRs≥3000S | (23℃ ,1min) |
| Reference Standard | IEC60252 UL810 GB/T3667.1-2005 | |

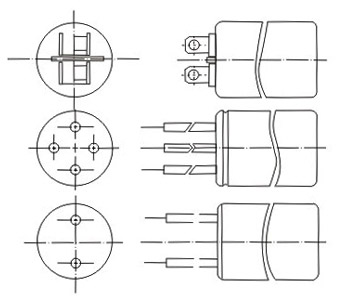

Typical Specifications Outside Dimensions
| 容量 | 250V.AC | 450V.AC | ||
| μF | D | H | D | H |
| 5μF+1μF | 35 | 40 | 42 | 40 |
| 10μF+4μF | 42 | 40 | 50.5 | 51 |
| 10μF+5μF | 42 | 40 | 50.5 | 51 |
| 12μF+5μF | 42 | 50 | 50.5 | 51 |
| 12μF_6μF | 42 | 50 | 50.5 | 51 |
| 40μF+20μF | 60 | 60 | 60 | 80 |
Specific dimensions and technical parameters, according to customer requirements through consultation.
